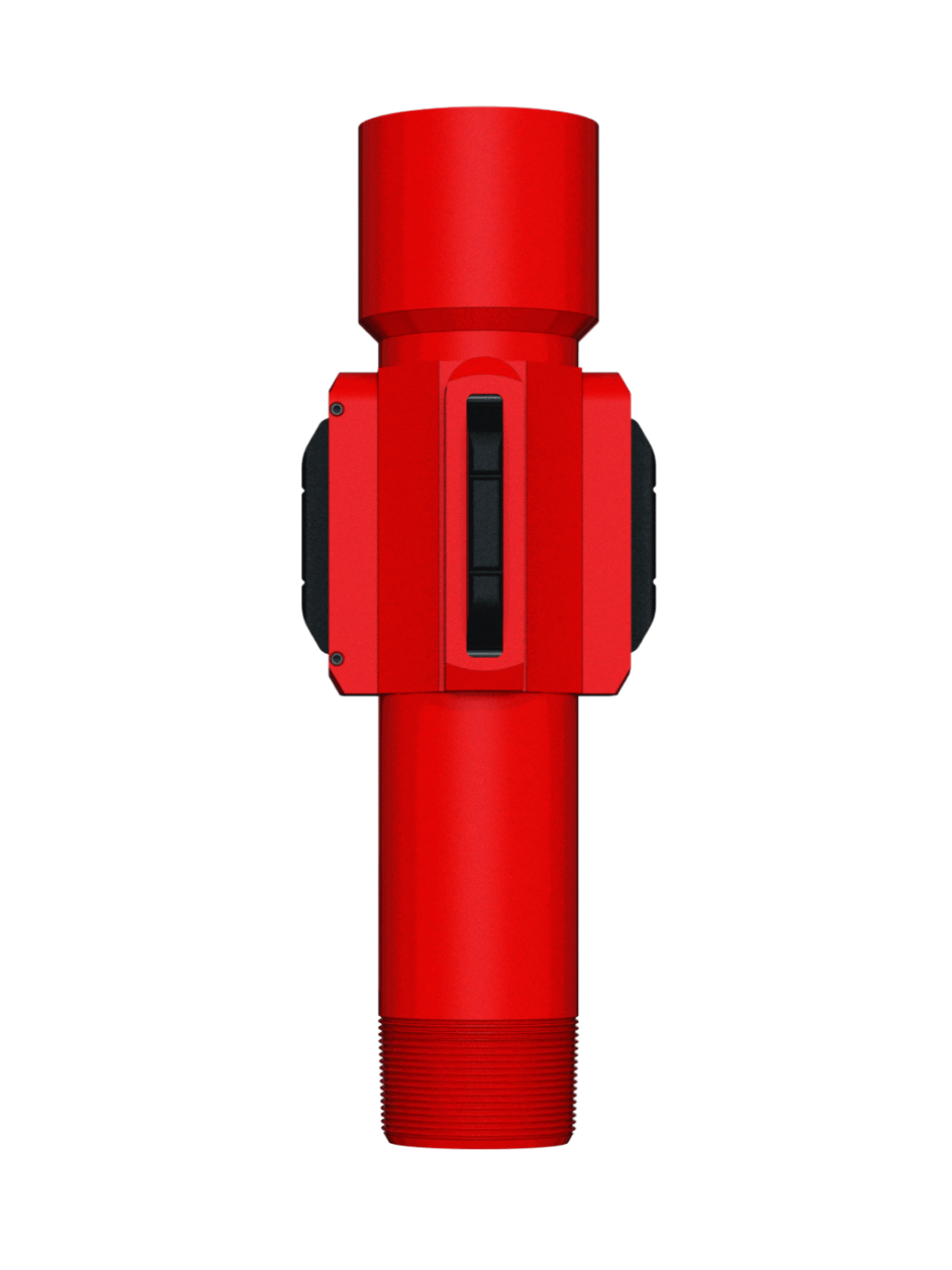

Enhance the longevity and efficiency of your downhole equipment with the Evolution Anti-Vibration Centralizer (AVC). Specifically designed to run alongside the tubing string, this centralizer keeps the tubing centered, preventing premature wear on both the casing and tubing.

Key Benefits

• Reduced Vibration: Effectively minimizes harmonics and vibrations caused by the downhole PCP, extending the life of your equipment.
• Enhanced Centralization: Keeps the top of the PCP pump and the production string centered during installation and production, ensuring optimal performance.
• Increased Production: Safety allows for higher PCP pump speeds, boosting overall production rates.
• Durability: Features a full tubing drift and high bypass, ensuring smooth operations and reduced wear on all downhole tools.

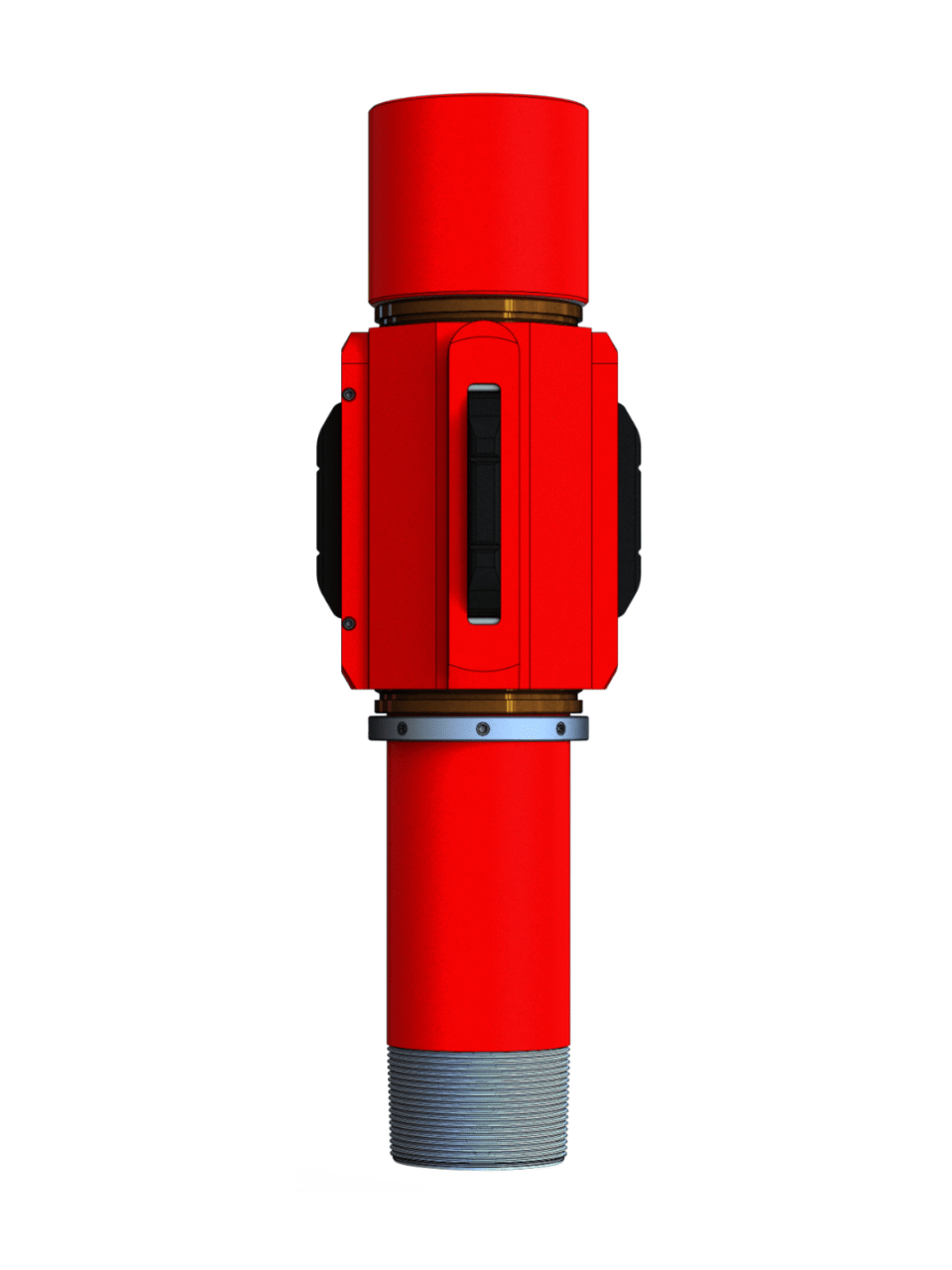

Evolution’s Rotating Anti-Vibration Centralizer (RAVC) is specifically designed to reduce PCP harmonic vibrations while using a surface tubing rotator, helping operators maximize production and equipment life.

Key Benefits

• Safely allows increased PCP speed to boost production.
• Reduces harmful downhole vibrations.
• Maintains tubing rotation during operation.
• High bypass capacity for optimized flow.

Increase the rigidity of your PC Pump with CAVS to dramatically reduce vibrations

• Dangerous vibrations are caused by operating near the natural frequency of the pump system or any of its harmonics. These vibrations lead to tubing breaks resulting in costly workover, tubing replacement and lost production.

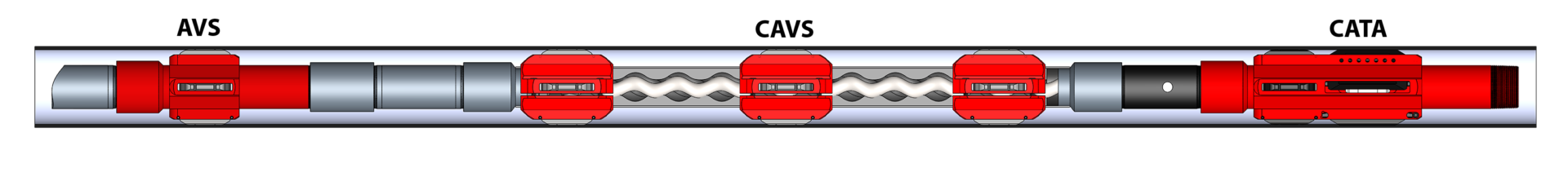

• Evolution has developed technology to eliminate the majority of vibration at the pump by firmly supporting the stator against the casing using the new CAVS.

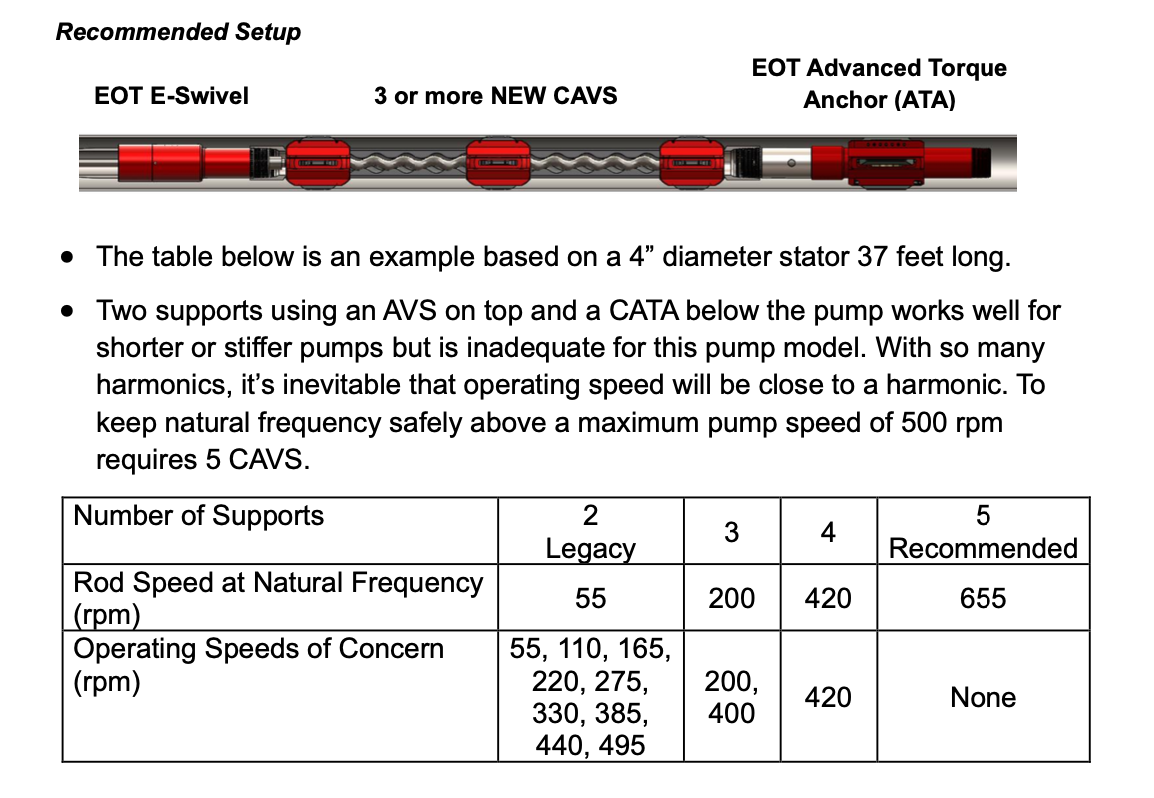

• Evolution can calculate the natural frequency of a pumping system to determine the number of CAVS required on the pump to ensure the natural frequency is above the maximum rod speed (500 rpm as default). Pump OD, ID and length are required.
