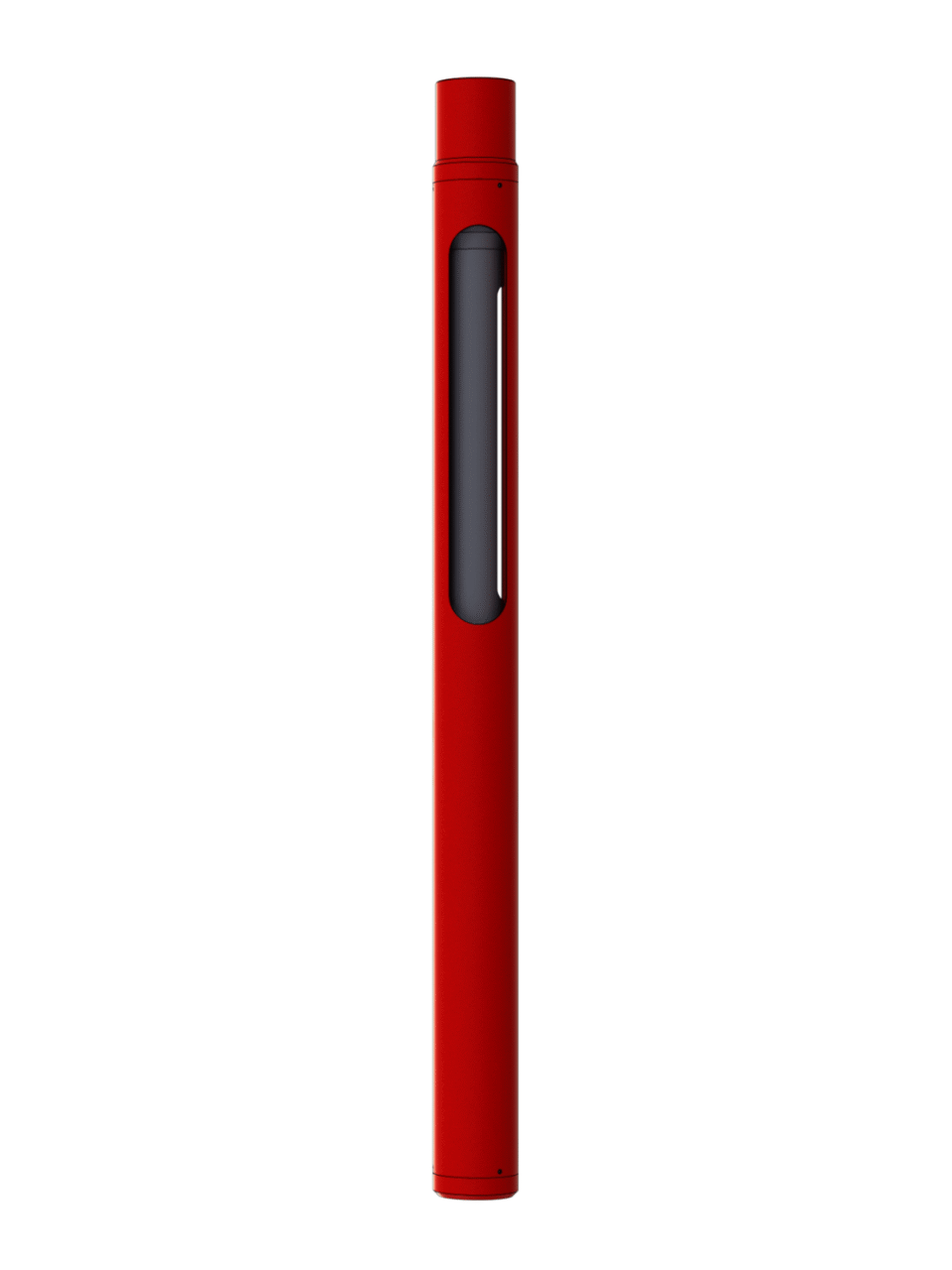

The Evolution Eccentric Intake is a cutting-edge solution designed specifically for horizontal wells where gas flow is present. It provides a superior alternative to open-end tubing and traditional gas separators, ensuring efficient separation of gas and fluid.

Key Features

• Optimal for Horizontal Wells: Designed to be used at deviations of 60 to 90 degrees, making it ideal for horizontal applications.
• Efficient Gas Separation: The internal mechanism automatically orients to allow production fluid to flow through the outlet while gas migrates back into the annulus.
• Minimized Flow Path: Positioned below the pumping system to reduce the distance between the outlet and the pump inlet, enhancing efficiency.
• Large Flow Ports: Ensures maximum flow area, reducing pressure drop.
• Durable Design: Features a closed bottom end to prevent bottom flow entry and a brass wear bushing with a centralizing pin for smooth internal rotation.

The Evolution ORCA™ Gas Separator is a continuous flow downhole tool specifically designed for use with PCP pumps in high gas environments. By utilizing centrifugal force, the ORCA™ effectively separates gas from the produced liquids before they enter the pump. This ensures that liquids are carried to the pump station while the separated gases are allowed to migrate up the annulus. The ORCA™ Gas Separator is available in either low flow or high flow configurations to enhance separation efficiency.

Key Features

• Eliminates CO2 and H2S gases, preventing
  premature degradation of the stator elastomer.
• Increases pump rate and efficiency.
• Available in low flow or high flow configurations.
• Easy to install and remove.
